DX3514 Multiplexer Scrambler
Product Overview
DX3514 Multiplexer Scrambler is Dexin’s latest multiplexing scrambling device. It has 4 bi-direction ASI and 3 bi-direction IP ports supporting up to 4 ASI and 128 IP input, after scrambling, it outputs 4 MPTS and max 4 ASI.
It has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting. In conclusion, its high integration and cost effective design make this device widely used in the CATV Broadcasting system.
Key Features
* ASI in/out: max 4 ASI input/output thru 4 bi-direction ASI ports (ASI direction can be defined as input or output manually)
* IP in/out: 128 IP input, 4 IP (MPTS) output thru 3 bi-direction Data ports
* Support scramble with up to 4 simulcrypt CAs
* Up to 512 PIDs remapping per output channel
* Support accurate PCR adjusting, PID filtering, re-mapping and PSI/SI rebuilding and editing
* Huge buffer memory for saving the overflowing code stream
* Alarming function
* Web-based NMS management

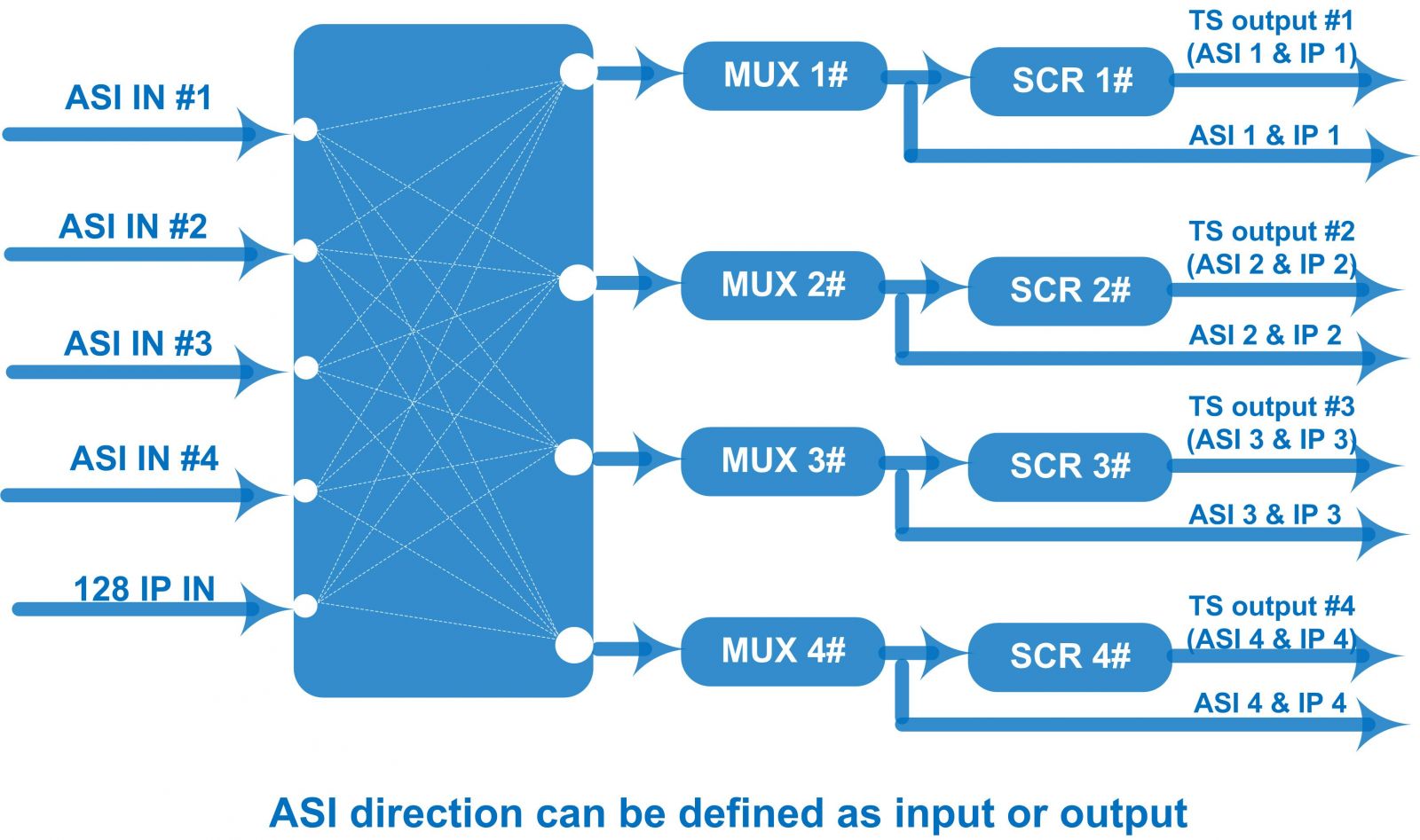

Inner Principle Chart
Specifications
|
Input / Output |
4 bi-direction ASI ports: max 4 ASI input/output, BNC 75Ω 3 bi-direction Data ports (RJ45): 128 IP input over UDP/RTP 4 IP (MPTS) output over UDP/RTP/RTSP 100/1000Mbps self-adaption |
||
|
Input Packet format: 204/188 self-adaption |
|||
|
ASI: Max output bit-rate: 200Mbps (Each channel) |
|||
|
Mux |
Max PIDs |
512 per channel |
|
|
Functions |
PID re-mapping |
||
|
PCR accurate adjusting |
|||
|
Automatic generating PSI/SI table |
|||
|
PID transparent |
Any PID transparent and mapping achievable |
||
|
Scrambling Parameters |
Max simulcrypt CA |
4 |
|
|
Scramble Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
||
|
Scramble Channel |
1 |
||
|
Connection |
Local/remote connection |
||
|
System |
Web-based management |
||
|
Language: English and Chinese |
|||
|
Ethernet software upgrade |
|||
|
General |
Dimensions |
482mm×300mm×44mm (WxLxH) |
|
|
Weight |
3.5kg |
||
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
||
|
Power supply |
AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz |
||
|
Consumption |
≤40W |
||
