NDS3364 64 in 1 IP QAM modulator
Product Overview
NDS3364 64 in 1 IP QAM modulator is a Multiplexing-scrambling-modulating all-in-one device developed by DEXIN. It has 64 multiplexing channels, 64 scrambling channels and 64 QAM (DVB-C) modulating channels, and supports maximum 512 IP inputs through the 4 data ports and 64 non-adjacent carriers (50MHz~960MHz) output through 2 RF output interfaces. The device is characterized with dual RF output ports which broaden the bandwidth for QAM carriers.
Key Features
* 6 GE inputs (4*RJ45, 2*SFP)
* Supports up to 512 IP inputs over UDP/RTP
* Max 840Mbps and 512 IP inputs for each GE input
* Supports multiplexing with accurate PCR adjusting, CA PID filtering, PID remapping and PSI/SI editing
* Supports up to 256 PID remapping per channel
* Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
* Support 64 multiplexed or scrambled IP outputs over UDP/RTP/RTSP
* 64 non-adjacent QAM carriers output from 2 RF interfaces, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B/C
* Supports RS (204,188) encoding
* Support Web-based Network management

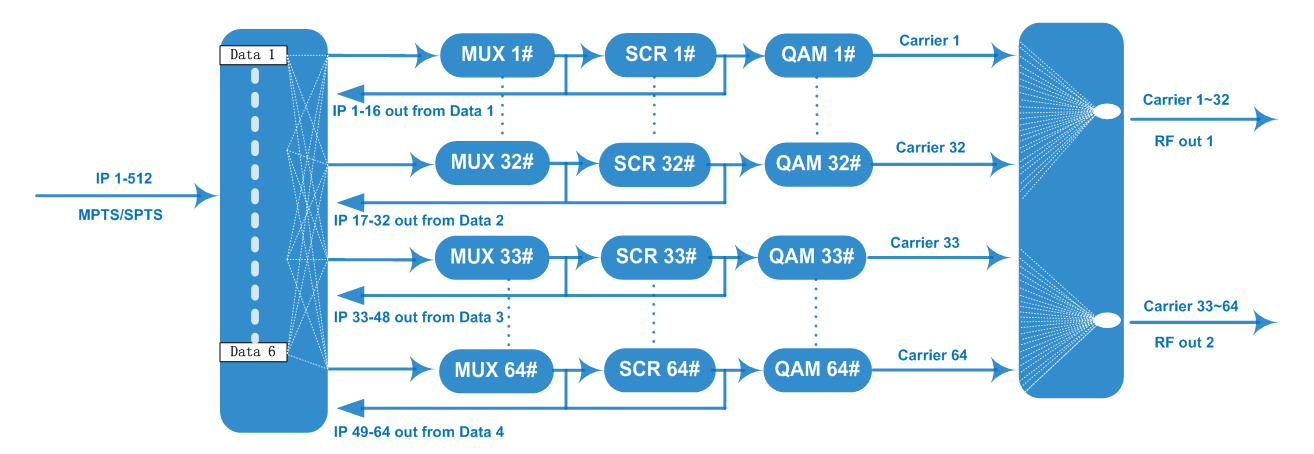

Inner Principle Chart

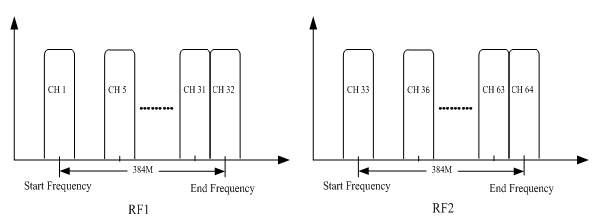

Carrier Setting Illustration
Specifications
|
Input |
Input |
Max 512 IP inputs from 6*100/1000M Ethernet Port (4*RJ45, 2*SFP) |
|||
|
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
||||
|
Transmission Rate |
Max 840Mbps for each GE input |
||||
|
Mux |
Input Channel |
512 |
|||
|
Output Channel |
64 |
||||
|
Max PIDs |
256 per channel |
||||
|
Functions |
PID remapping(auto/manually optional) |
||||
|
PCR accurate adjusting |
|||||
|
PSI/SI table automatically generating |
|||||
|
Scrambling Parameters |
Max simulscrypt CA |
6 |
|||
|
Scramble Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
||||
|
Connection |
Local/remote connection |
||||
|
Modulation Parameters |
Modulation Standard |
EN300 429/ITU-T J.83A/B/C |
|||
|
Constellation |
J.83A |
Constellation :16/32/64/128/256QAM |
|||
|
Bandwidth :8M |
|||||
|
J.83B/C |
Constellation :64/256QAM |
||||
|
Bandwidth :6M |
|||||
|
QAM Channel |
64 non-adjacent carriers 384Mbps bandwidth for each RF interface |
||||
|
Symbol Rate |
5.0~7.0Msps, 1ksps stepping 5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM) |
||||
|
Constellation |
16, 32, 64 , 128, 256QAM |
||||
|
FEC |
RS (204, 188) |
||||
|
RF Output |
Interface |
2 F type output ports for 64 carriers, 75Ω |
|||
|
RF Range |
50~960MHz, 1kHz stepping |
||||
|
Output Level |
-20dBm~+10dBm(87~117dbµV), 0.1dB stepping |
||||
|
MER |
≥ 40dB |
||||
|
TS output |
64 IP output over UDP/RTP/RTSP, unicast/multicast, 4*100/1000M Ethernet Ports (each port for 16 IP outputs) |
||||
|
System |
Web-based Network management |
||||
|
General |
Demission |
420mm×440mm×44.5mm (WxLxH) |
|||
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
||||
|
Power Supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
||||
