DHP200E 10G IP QAM Processor
Product Overview
DHP200E 10G IP QAM processor is an all-in-one device developed by DEXIN which integrates multiplexer, scrambler and modulator in one body with maximum 192 DVB-C QAM channels output. With 10G switch built in, it can process 10G optical signals to work as a traditional QAM modulator.
This processor is equipped with 3 card slots to load 32ch or 48ch or 64ch QAM card. Its high density helps operators to save cost to the most extent.
Key Features
Support 4 SFP+ (10G)/4 SFP(1G) ports and 12 GE ports input & output from the front panel, SFP port 1-4 and GE port 1-4 are in the same working group (choose one to use from the corresponding SFP port and GE port) and 2 SFP ports input(optional) per daughter card (32/48/64 QAM)
High density, modularized plug-in design, 1U chassis with max 3 QAM cards
Support multiplexer and scrambler with max 6 CAS Simultaneous Encryption
Maximum 192 non-adjacent QAM carriers output
Flexible combination of 32QAM/48QAM/64QAM card
Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing
Input Port/IP Backup function
Web-based Network management
1*220VAC or 2*220VAC not hot-swapping PSU option

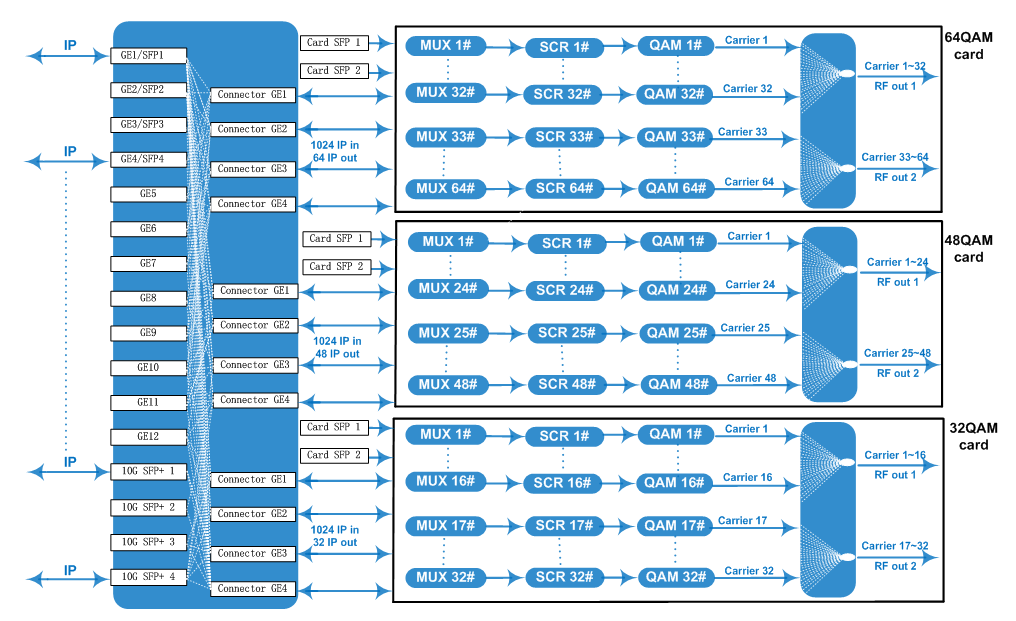

Inner Principle Chart (Example: one 64qam card + one 48qam card + one 32qam card)
Carrier Setting Illustration (Example: 64qam card)
Specifications
|
Input |
IP Input |
Max1024 IP inputs per card through 4 SFP+, 4 SFP and 12 GE ports in the front panel and 2 SFP ports in the card itself |
||
|
Transmission Rate |
Max 9600Mbps for each 10G SFP+ input/Max 960Mbps for each GE and SFP input |
|||
|
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
|||
|
Mux |
Max PIDs Remapping |
256 per output channel |
||
|
Functions |
PID remapping (auto/manually optional) |
|||
|
PCR accurate adjusting |
||||
|
PSI/SI table automatically generating |
||||
|
Scrambling |
Max simulcrypt CA |
6 |
||
|
Scramble Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
|||
|
Connection |
Local/remote connection |
|||
|
Modulation |
Modulation Standard |
EN300 429/ITU-T J.83A/B/C |
||
|
Constellation |
J.83A |
Constellation :16/32/64/128/256QAM |
||
|
Bandwidth :8M |
||||
|
J.83B/C |
Constellation :64/256QAM |
|||
|
Bandwidth :6M |
||||
|
QAM Channel |
32/48/64/80/96/112/128/144/160/176/192 non-adjacent carriers output, 384Mbps bandwidth for each RF port |
|||
|
Symbol Rate |
3600~7200Ksps, 1ksps stepping 5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM) |
|||
|
Constellation |
16, 32, 64, 128, 256QAM |
|||
|
FEC |
RS (204, 188) |
|||
|
RF Output |
Interface (per card) |
2 F type output ports for 32/48/64 carriers card, 75Ω. 32ch/48ch/64ch qam card : Carrier 1~16/1~24/1~32 out thru RF1, 17~32/25~48/33~64 thru RF2 |
||
|
RF Range |
50~960MHz, 1kHz stepping |
|||
|
Output Level |
-20dBm~+10dBm(87~117dbµV), 0.1dB stepping |
|||
|
MER |
≥ 40dB |
|||
|
TS output |
Per Daughter QAM Card |
32/48/64 IP output over UDP/RTP/RTSP, unicast/multicast, through 4 SFP+ ports, 4 SFP ports and 12 GE ports in the front panel |
||
|
System |
Web-based Network management |
|||
|
General |
Dimension |
480mm×440mm×44.5mm (WxLxH) |
||
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|||
|
Power Supply |
AC 100V±10%, 50/60Hz ; or AC 220V±10%, 50/60Hz |
|||
|
Consumption |
About 200W (3 daughter QAM cards) |
|||
Major Technical Comparison
|
|
DHP200D |
DHP200E |
|
Card Number |
Max 2 |
Max 3 |
|
SFP+/SFP/RJ45 ports in the front panel |
3 SFP+(10G)/SFP(1G) ports and 2 GE ports |
4 SFP+ (10G)/4 SFP(1G) ports and 12 GE ports |
|
Max Carriers number |
112 |
192 |
|
Inner connector GE ports |
6 |
12 |
|
DATA Port in card |
Depends on card spec |
2 SFP ports as input per card |
Order Guide
- Card Type Option: 32, 48 or 64 QAM card
- Card Number Option: 1, 2 or 3 pcs
- SFP ports option in card: With or Without
- PSU option: 1*220VAC or 2*220VAC not hot-swapping PSU
