NDS3308T 8in1/16in1/24in1 DVB-T Modulator
Product Overview
NDS3308T 8in1/16in1/24in1 DVB-T modulator is an all-in-one device developed by DEXIN. It supports maximum 256 (or 512, or 768) IP input through the GE/SFP port and has 8 (or 16, or 24) multiplexing channels and 8 (or 16, or 24) DVB-T modulating channels of non-adjacent carriers (50MHz~960MHz). The device is characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.
Key Features
* 3 GE ports for IP input and output --Version I & II
6 GE ports (4*RJ45, 2*SFP), data1-4 for IP input (RJ45/SFP), data 3-4 for IP output --Version III
* Max 840Mbps for each input
* Supports accurate PCR adjusting
* Supports PID remapping and PSI/SI editing
* Supports up to 180 PIDs remapping per channel
* Support 8 (or 16, or 24) multiplexed TS over UDP/RTP/RTSP output
* 8 (or 16, or 24) DVB-T non-adjacent carriers output, compliant to ETSI EN300 744 standard
* Supports RS (204,188) encoding
* Support Web-based Network managementProduct Overview
Inner Principle Chart

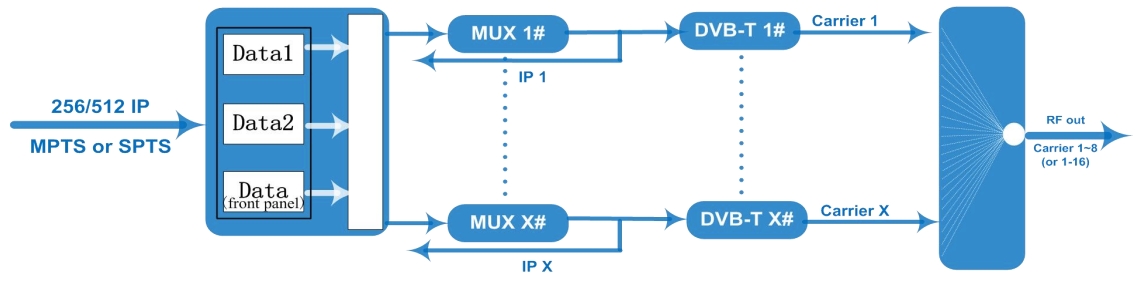

Version I & II - For 8&16 carriers out):

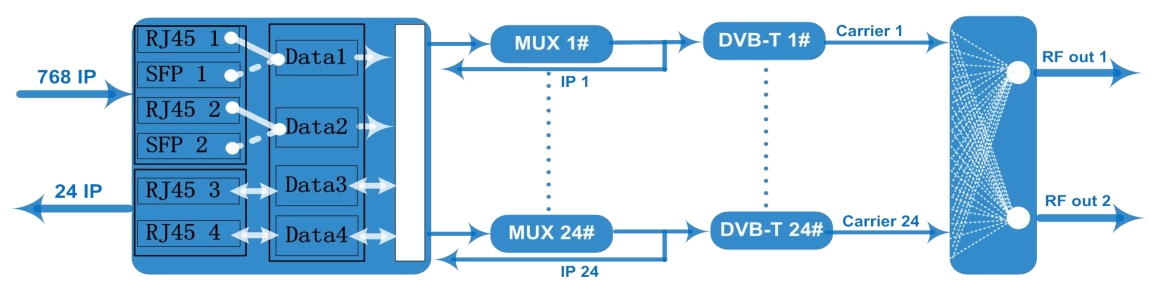

Version III - For 24 carriers out)::

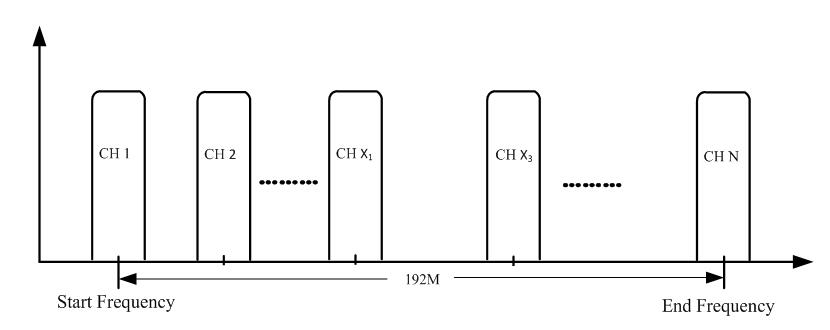

Carrier Setting Illustration
Specifications
|
Input |
Input |
Max 256/512 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional). - For Version I & II Max 768 IP input through data ports 1 to 4 100/1000M Ethernet Ports (RJ45 and SFP interface alternative). –For Version III |
|
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
|
|
Transmission Rate |
Max 840Mbps for each input channel |
|
|
Mux |
Input Channel |
256 IP streams - Version I 512 IP streams - Version II 640 IP streams - Version III |
|
Output Channel |
8 (or 16, or 24) |
|
|
Max PIDs |
180 per channel |
|
|
Functions |
PID remapping(auto/manually optional) |
|
|
PCR accurate adjusting |
||
|
PSI/SI table automatically generating |
||
|
Modulation Parameters |
Output Channel |
8 non-adjacent carriers output - Version I 16 non-adjacent carriers output - Version II 24 non-adjacent carriers output - Version III |
|
Modulation Standard |
ETSI EN300 744 |
|
|
Constellation |
QPSK/16QAM/64QAM |
|
|
Bandwidth |
6/7/8 MHz |
|
|
Trans mode |
2K/4K/8K |
|
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
RF Output |
Interface |
F typed output port for 8 (or 16) non-adjacent carriers |
|
RF Range |
50~960MHz, 1kHz stepping |
|
|
Output Level |
-20~+10dbm (for all carriers), 0.5db stepping |
|
|
MER |
≥ 40dB |
|
|
ACL |
-55 dBc |
|
|
TS output |
8 (or 16, or 24) IP output over UDP/RTP/RTSP, unicast/multicast, 2 100/1000M Ethernet Ports |
|
|
System |
Web-based Network management |
|
|
General |
Demission |
420mm×440mm×44.5mm (WxLxH) |
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
|
Power Supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
|
Order Guide:
|
|
Version I |
Version II |
Version III |
|
256 IP input to 8ch DVB-T carriers out, 8 IP out |
x |
|
|
|
512 IP input to 16ch DVB-T carriers out, 16 IP out |
|
x |
|
|
768 IP input to 24ch DVB-T carriers out, 24 IP out |
|
|
x |
