NDS3308T (V2) 8in1/16in1 DVB-T Modulator
Product Overview
NDS3308T (V2) 8in1 (or 16in1) DVB-T modulator is an all-in-one device developed by DEXIN. It supports maximum 512(or 1024) IP input through the 4 GE/SFP port and also 8 ASI input. After multiplexing 8(or 16) and DVB-T modulating, it gives 8(or 16) non-adjacent carriers (50MHz~960MHz), 2 ASI output and 8 or 16 IP (MPTS) output as mirror of carriers. The device is characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.
Key Features
l 4 GE/SFP ports (max 512/1024 IP in):
Data1 is bi-directional port, max 512 IP in, 8 IP out(for 8 DVB-T out verison)
Data1 is bi-directional ports, max 1024 IP in, 16 IP out(for 16 DVB-T out verison)
Data2&3&4 ports only for input
* Supports accurate PCR adjusting
* Max 840Mbps for each input
* Supports PID remapping and PSI/SI editing
* Supports up to 256 PIDs remapping per channel
* Supports 6 ASI input and 2 ASI output
* Support 8 (or 16) multiplexed TS over UDP/RTP/RTSP output
* 8(or 16) DVB-T non-adjacent carriers output, compliant to ETSI EN300 744 standard
* Supports RS(204,188) encoding
* Support Web-based Network management
Inner Principle Chart

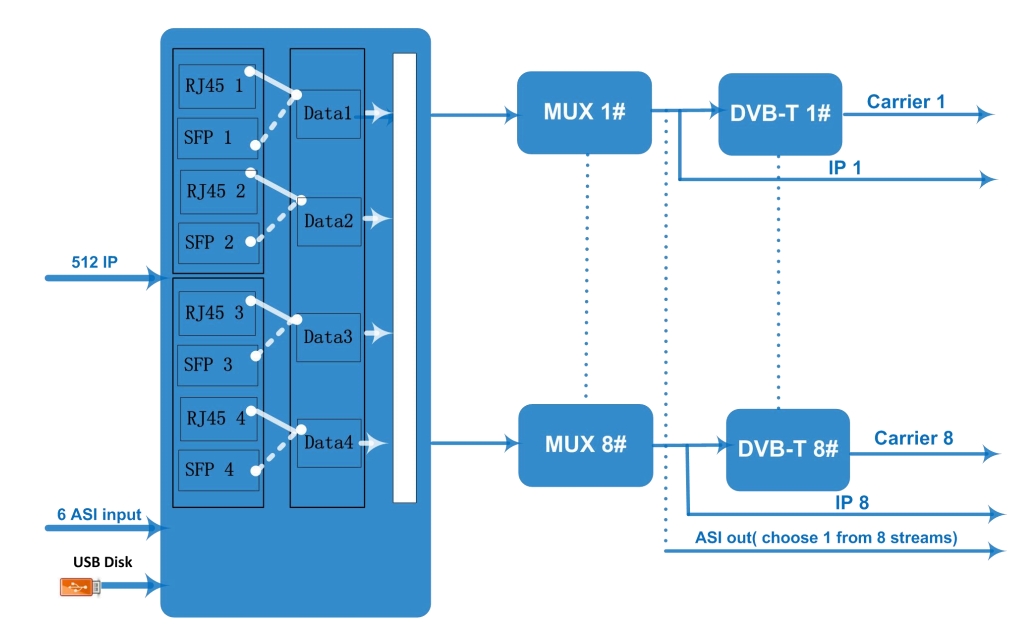

For 8 carriers out:

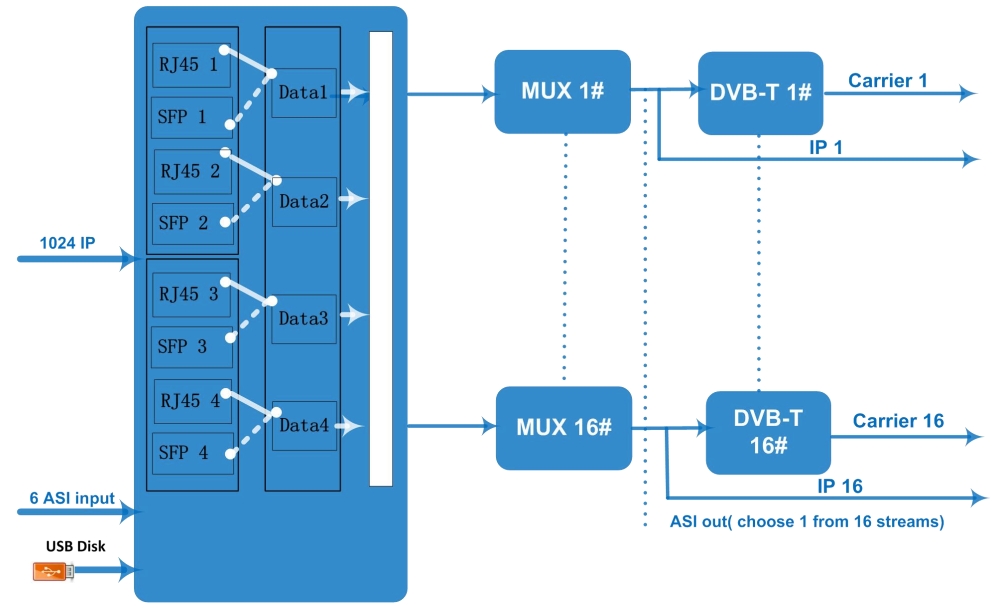

For 16 carriers out:

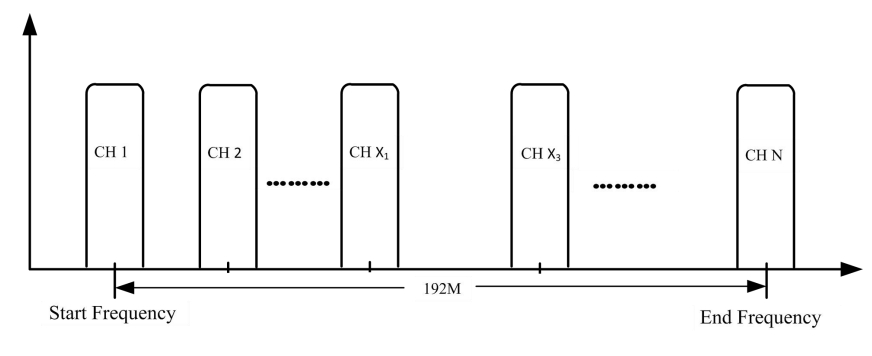

Carrier Setting Illustration:
Specifications
|
Input |
Input |
8 DVB-T carriers: Max 512 IP input through Date1-Date4 100/1000M Ethernet Port (or SFP interface optional). Each Data port can input max 512 IP. 16 DVB-T carriers: Max 1024 IP input through Date1-Date4 100/1000M Ethernet Port (or SFP interface optional). Each Data port can input max 1024 IP. |
|
6 ASI input, BNC interface |
||
|
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
|
|
Transmission Rate |
Max 840Mbps for each input channel |
|
|
Mux |
Input Channel |
512(or 1024) |
|
Output Channel |
8 (or 16) |
|
|
Max PIDs |
256 per channel |
|
|
Functions |
PID remapping(auto/manually optional) |
|
|
PCR accurate adjusting |
||
|
PSI/SI table automatically generating |
||
|
Modulation Parameters |
Channel |
8(or 16) |
|
Modulation Standard |
ETSI EN300 744 |
|
|
Constellation |
QPSK/16QAM/64QAM |
|
|
Bandwidth |
6/7/8 MHz |
|
|
Trans mode |
2K/4K/8K |
|
|
FEC |
1/2,2/3,3/4,5/6,7/8 |
|
|
RF Output |
Interface |
F typed output port for8(or 16) non-adjacent carriers |
|
RF Range |
50~960MHz, 1kHz stepping |
|
|
Output Level |
-20~+10dbm(for all carriers), 0.5db stepping |
|
|
MER |
≥ 40dB |
|
|
ACL |
-55 dBc |
|
|
TS output |
8 (or 16) IP output over UDP/RTP/RTSP, unicast/multicast, Data1 100/1000M Ethernet Ports |
|
|
2 ASI output, one as mirror |
||
|
System |
Web-based Network management |
|
|
General |
Demission |
420mm×440mm×44.5mm (WxLxH) |
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
|
Power Supply |
AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz |
|
