NDS3306I 8in1/16in1/20in1 ISDB-T Modulator
Product Overview
NDS3306I 8in1/16in1/20in1 ISDB-T modulator is the latest generational Mux-modulating device developed by DEXIN. It converts IP streams to 8 (or16, or 20) ISDB-T non-adjacent carriers (50MHz~960MHz) output through the RF interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.
Key Features
* 3 GE ports for IP input and output --Version I & II
6 GE ports (4*RJ45, 2*SFP), data1-4 for IP input (RJ45/SFP), data 3-4 for IP output --Version III
* Max 840Mbps for each GE input
* Supports accurate PCR adjusting
* Supports CA filtering, PID remapping and PSI/SI editing
* Supports up to 256 PIDS remapping per channel
* Support 8 IP output through Data1 & Data2 over UDP/RTP/RTSP--Version I
Support 16 IP output through Data1 & Data2 over UDP/RTP/RTSP--Version II
Support 20 IP output through Data3 & Data4 over UDP/RTP/RTSP--Version III
* 8 (or 16, or 20) non-adjacent carriers output, compliant to ISDB-Tb (ARIB STD-B31)
* Support Web-based Network management
Inner Principle Chart

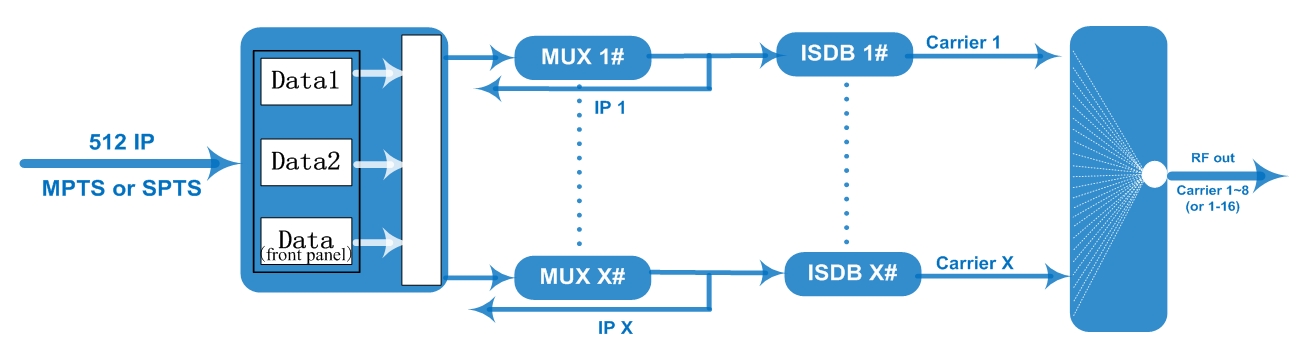

(Version I & II - For 8&16 carriers out):

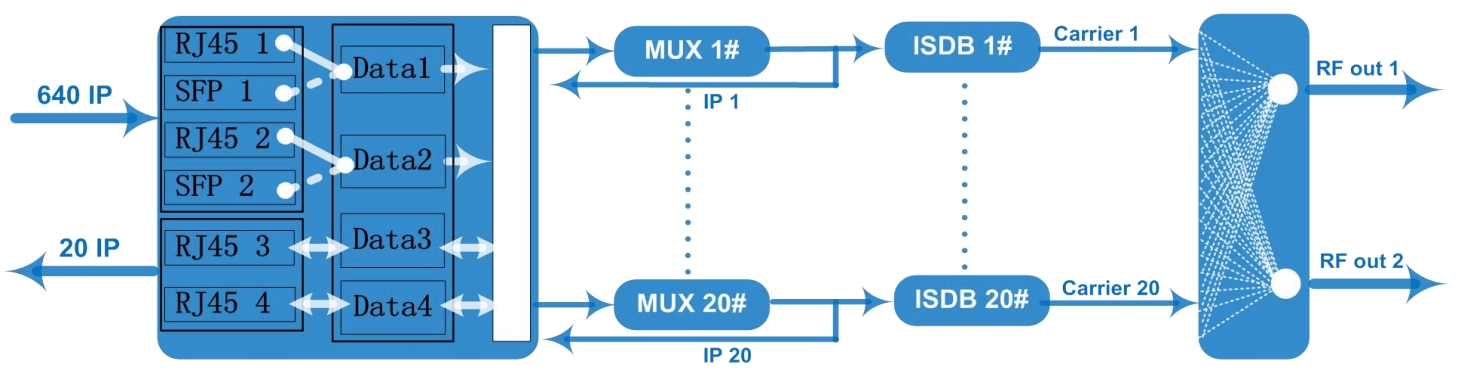

(Version III - For 20 carriers out):

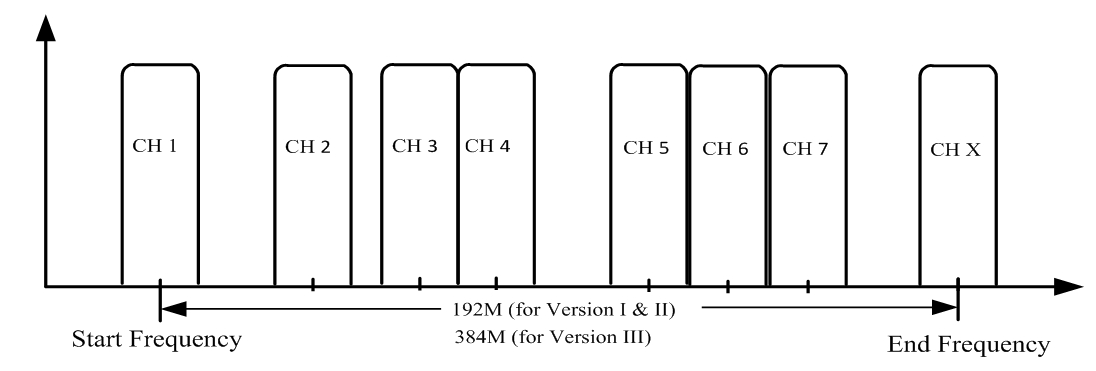

Carrier Setting Illustration
Specifications
|
Input |
Input |
Max 512 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional). - For Version I & II Max 640 IP input through data ports 1 to 4 100/1000M
Ethernet Ports (RJ45 and SFP interface alternative). –For Version III
|
|
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
|
|
Transmission Rate |
Max 840Mbps for each GE input |
|
|
Mux |
Input Channel |
512 IP streams- Version I & II 640 IP streams- Version III |
|
Output Channel |
8 (or 16, or 20) |
|
|
Max PIDs |
256 per channel |
|
|
Functions |
PID remapping (auto/manually optional) |
|
|
PCR accurate adjusting |
||
|
PSI/SI table automatically generating |
||
|
Modulation Parameters |
Standard |
ARIB STD-B31 |
|
Bandwidth |
6M |
|
|
Constellation |
QPSK, 16QAM, 64QAM |
|
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|
|
Transmission Mode |
2K, 4K, 8K |
|
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
MER |
≥40dB |
|
|
RF frequency |
50~960MHz, 1KHz step |
|
|
RF output level |
-20dBm~+10dBm(87~117dbµV), 0.1dB stepping |
|
|
Output Channel |
8 non-adjacent carriers output - Version I 16 non-adjacent carriers output - Version II 20 non-adjacent carriers output - Version III |
|
|
RF Output |
Interface |
1 F type port, 75Ω impedance - Version I & II 2 F type port, 75Ω impedance - Version III |
|
ACLR |
-50 dBc |
|
|
IP output |
8 (or 16, or 20) IP output over UDP/RTP/RTSP, unicast/multicast, 100/1000M Ethernet Ports |
|
|
System |
Web-based NMS management |
|
|
General |
Demission |
480mm×327mm×44.5mm (WxLxH) |
|
Weight |
5.5kg |
|
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
|
Power Supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
|
Order Guide
|
|
Version I |
Version II |
Version III |
|
512 IP input to 8ch ISDB-T carriers out, 8 IP out |
x |
|
|
|
512 IP input to 16ch ISDB-T carriers out, 16 IP out |
|
x |
|
|
640 IP input to 20ch ISDB-T carriers out, 20 IP out |
|
|
x |
