Product Overview

NDS2403G ATSC-T modulator is DEXIN’s newly designed product supporting DVB-ASI and SMPTE-310 input. After modulating the inputting signals through ATSC 8-VSB, it can output RF signals with the range between 50~860MHz. In other words, NDS2403G ATSC-T modulator supports the coding and modulating mode under ATSC-T A/53 standard. It also supports adaptive non-linear and linear digital pre-distortion (DPD). Additionally, the system of this device can be on line controlled and upgraded through network, which can be widely used in ATSC-T digital broadcasting network setup and the testing for ATSC-T set top box design.

*Full complying with ATSC A/53 standard

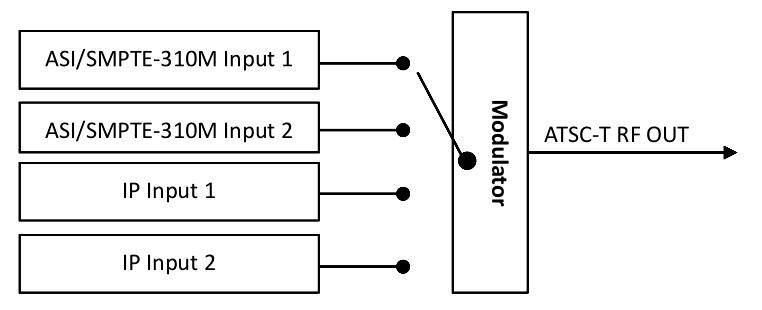

*Dual channel DVB-ASI/SMPTE-310M input, automatic switch-over and hot backup

*Dual IP input ports, GE ports, over UDP/RTP

*RF range: 50MHz~860MHz,1Hz stepping

*Front panel and IP remote control

*RS coding, data interleaving, Trellis coding

*Supports adaptive linear or non-linear digital pre-distortion (DPD)

*Adopts constant-temperature crystal oscillator, the frequency stability can be up to 0.1 PPM

*Excellent RF output performance: EVM, MER, SNR, shoulder level and etc.

*Remote maintenance, monitoring and software upgrading

*NMS, Keyboard and LCD operation

Specifications
