Outline

NEP100 network encoder processor is an IP broadcasting device with multiple inputs (HDMI/SDI) which can convert the input programs into IP format and send to terminals through the internet/LAN.

This 1-U chassis comes with 3 slots which allow loading different encoder modules with different interfaces and video formats.

Key Features

*  Modular design, 1U chassis with 3 slots

* Support flexible combination of encoding modules, up to 12 HD programs inputs

*  HDMI/SDI modules available, HEVC/MPEG4 video format for option

* 1 GE port with maximum 180Mbps data processing and output

*  IP out over UDP (SPTS) (Unicast/Multicast), RTP (Unicast/Multicast), RTSP (Unicast), RTMP (Unicast), HTTP(Unicast), HLS (Unicast);  RTMP only works under H. 264 video format and AAC audio format

    RTSP/RTMP/HTTP/HLS support each ch video bitrate max: 8Mbps

    UDP/RTP support each ch video bitrate max: 12Mbps

* Support Web management, Upgrade via USB port

Encoder Module Specifications

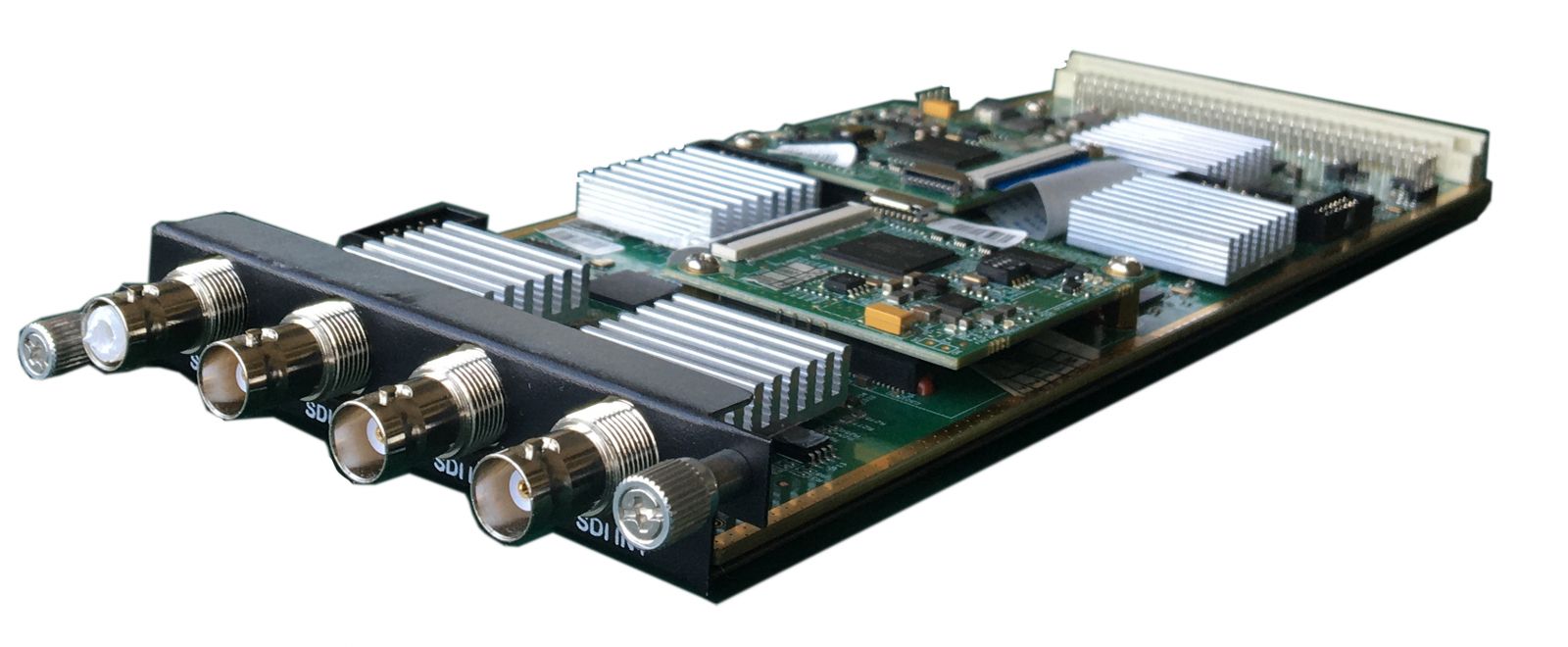

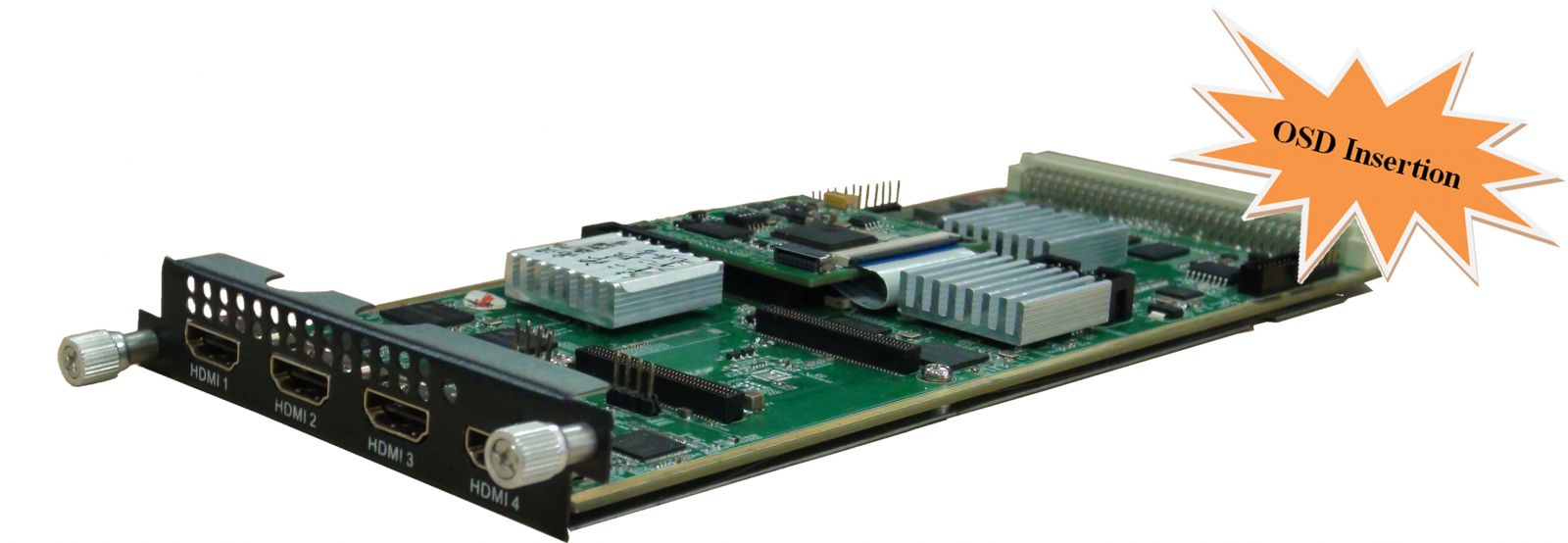

4 HDMI/SDI Encoding Module (DX224H/HV)

Module Specifications:

Input: 4×HDMI (1.4) input, HDCP 1.4, or 4×SDI input

Video Encoding:

Video format: HEVC/H.265 & MPEG 4 AVC/H.264

Resolution:

Chroma: 4:2:0

Bit rate (each channel): 0.5Mbps~20Mbps (H.265),  4 Mbps~20Mbps (H.264)

Rate Control: CBR/VBR

GOP structure: IBBP, IPPP

Audio Encoding:

Audio format: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough

Sampling rate: 48KHz

Bit-rate (each channel):

48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)

24 Kbps~128 Kbps (HE-AAC)

18 Kbps~56 Kbps (HE-AAC V2)

Audio Gain: 0~255

Support Logo, QR Code insertion--Optional as per order

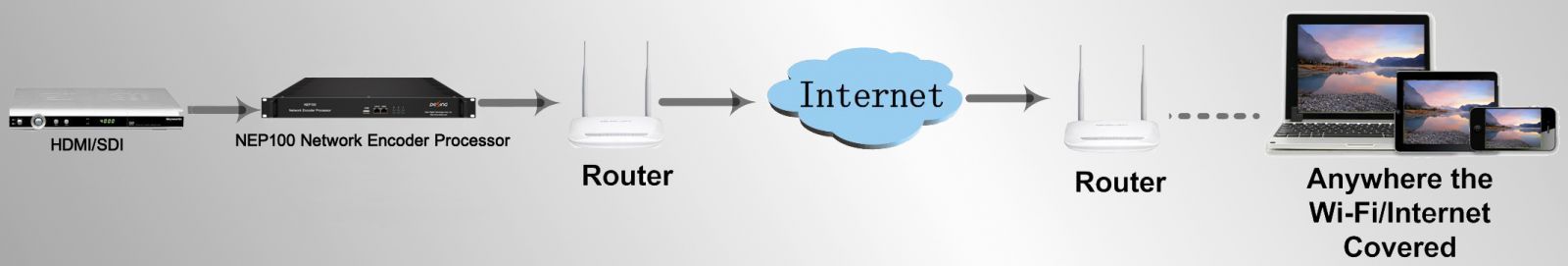

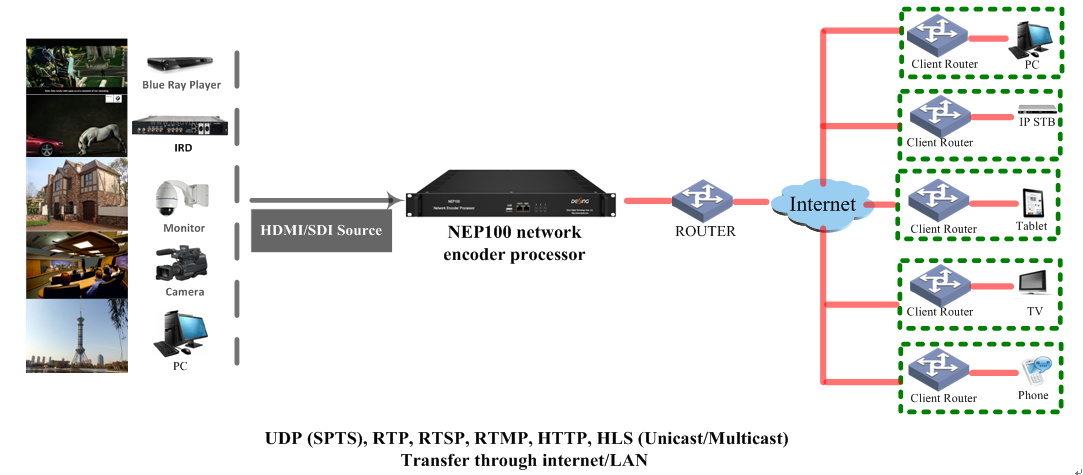

System Diagram Illustration:

Equipment Specifications:
