NDS3236S/NDS3244S Multi-channel Encoder
Product Overview
NDS3236S/NDS3244S Multi-Channel encoder is a professional HD/SD audio & video encoding device. It has 16/24 HDMI inputs with very 8 HDMI ports share one encoder module with each module supporting 1MPTS and 8SPTS output. Its high integration and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
Key features
- 16 or 24 HDMI inputs with SPTS and MPTS output (2 or 3 Encoder Modules share the same one NMS port and DATA port)
- MPEG4 AVC/H.264 video encoding format
- MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
- IP output over UDP and RTP/RTSP protocol
- Support QR code, LOGO, caption insertion
- Support “Null PKT Filter” function
- Control via web management, and easy updates via web

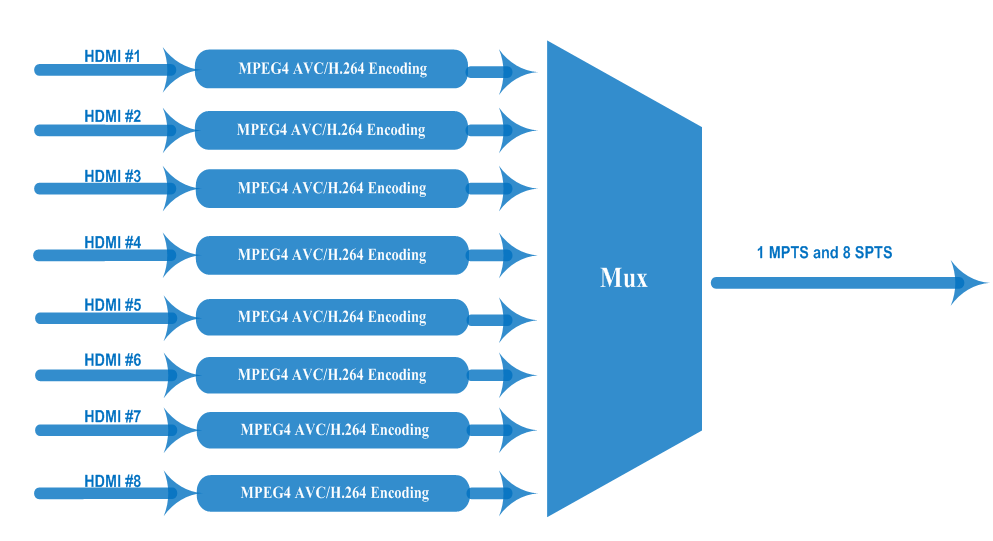

Principle Chart (Each Encoder Module)
Technical specification
|
Input |
16 HDMI inputs (NDS3236S); 24 HDMI inputs (NDS3244S) |
|||
|
Video |
Resolution |
input |
1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720 x 576_50i,720 x 480_60i |
|
|
Output |
1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720 x 576_25P, 720 x 480_30P |
|||
|
Encoding |
MPEG-4 AVC/H.264 |
|||
|
Bit-rate |
1~20Mbps each channel |
|||
|
Rate Control |
CBR/VBR |
|||
|
GOP Structure |
IP…P (P Frame adjustment, without B Frame ) |
|||
|
Audio |
Encoding |
MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through |
||
|
Sampling rate |
48KHz |
|||
|
Resolution |
24-bit |
|||
|
Audio Gain |
0-255 Adjustable |
|||
|
MPEG-1 Layer 2 Bit-rate |
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
|||
|
LC-AAC Bit-rate |
48/56/64/80/96/112/128/160/192/224/256/320/384 kbps |
|||
|
HE-AAC Bit-rate |
48/56/64/80/96/112/128 kbps |
|||
|
Stream output |
IP output through DATA (GE) over UDP and RTP/RTSP protocol (8 HDMI inputs with 8 SPTS and 1MPTS output for each encoder module) |
|||
|
System function |
Network management (WEB) |
|||
|
English language |
||||
|
Ethernet software upgrade |
||||
|
Miscellaneous |
Dimension(W×L×H) |
440mm×324mm×44mm |
||
|
Environment |
0~45℃(work)；-20~80℃（Storage） |
|||
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
|||
Order Guide
|
P/N |
Config |
|
NDS3236S |
16 HDMI inputs |
|
NDS3244S |
24 HDMI inputs |
