NDS3556HS H.265/H.264 HD Encoder Modulator
New Comer!
General Description
DEXIN NDS3556HS HD encoder & modulator is designed based on consumer electronics which allow HDMI signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, etc.
It is an all-in-one device integrating encoding and modulating to convert audio/video signals into DVB-C/DVB-T/ISDB-T/ATSC RF out.
The signals source could be from STB, satellite receiver, closed-circuit television cameras and etc. Its output signal is to be received by TVs or STBs etc.
Key Features
*HDMI input with H.265/h.264 video
*DVB-C/DVB-T/ISDB-T/ATSC RF OUT for Option
*IP output over UDP, RTP/RTSP
*Support AC3 Pass-through
*Support OSD (logo/QR Code/Caption) insertion (optional)

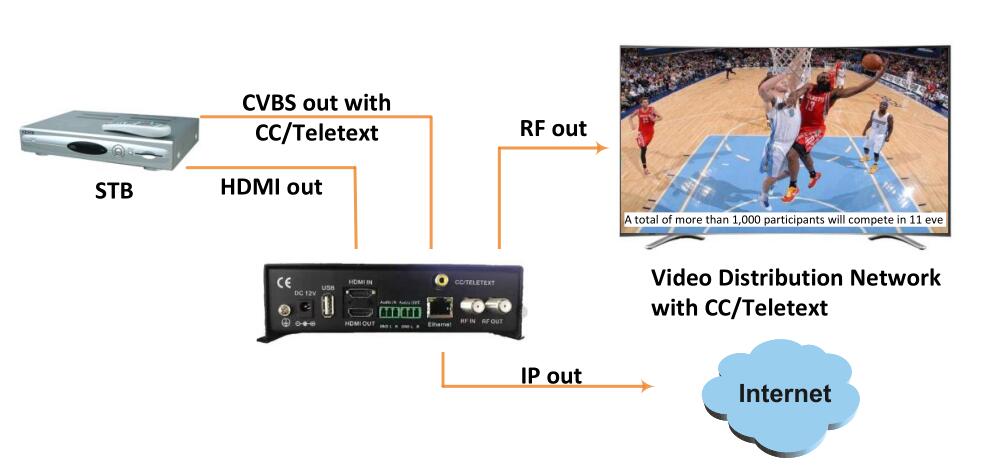

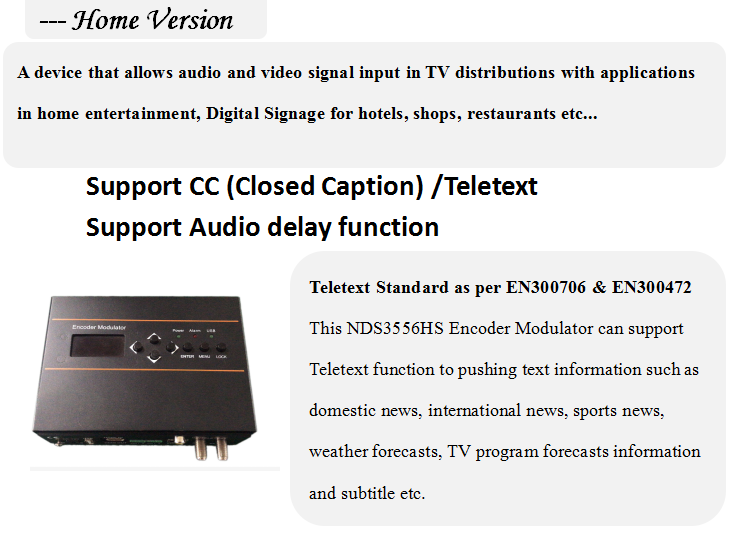

*Support CC (Closed Caption)/ Teletext
* Support Audio delay functionk
* LED Screen for easy management

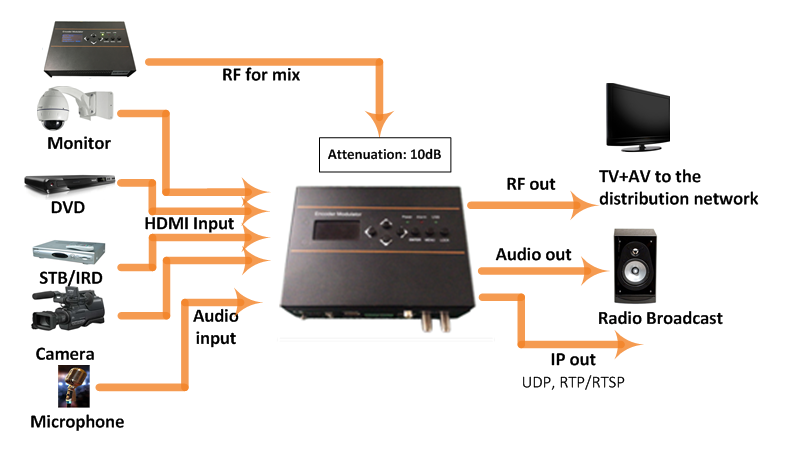

System Connection

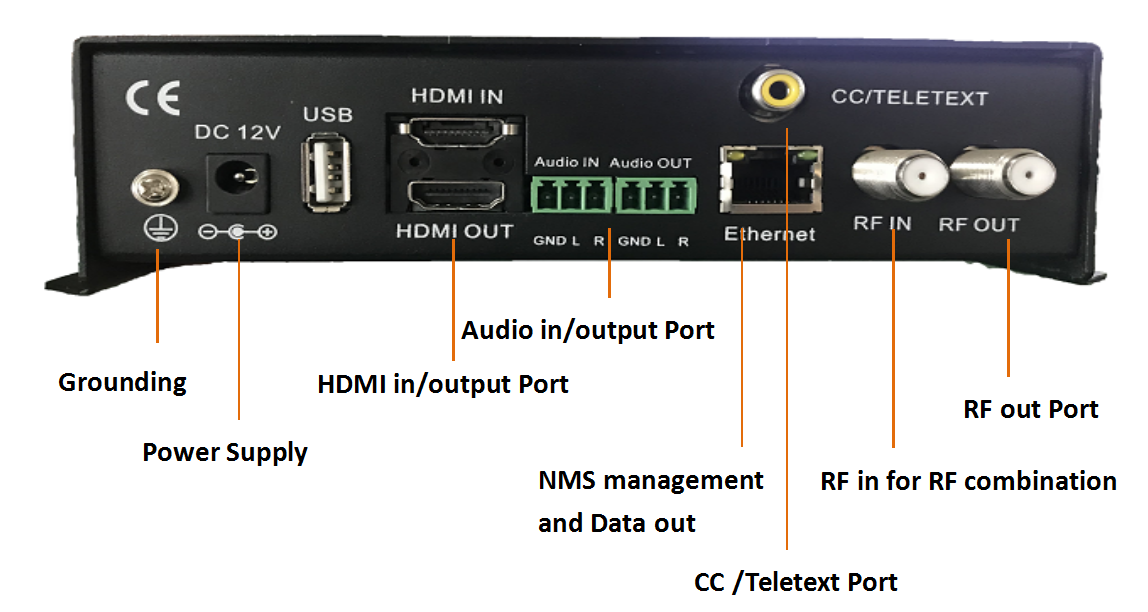

Appearance and Description
Technical Specs
|
HDMI Encoding Section |
||||
|
Video |
Encoding |
HEVC/ H.265 , MPEG 4 AVC/H.264 |
||
|
Interface |
HDMI*1. HDMI loop out*1 |
|||
|
Resolution |
1920*1080_60P, 1920*1080_50P; 1920*1080_59.94P, 1280*720_60p, 1280*720_59.94 1280*720_50P |
|||
|
Chroma |
4:2:0 |
|||
|
Bitrate |
1Mbps~15Mbps |
|||
|
Rate Control |
CBR/VBR |
|||
|
GOP Structure |
IP |
|||
|
Audio |
Encoding Format |
MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2; AC3 Pass-through |
||
|
Sample rate |
32KHz,44.1KHz,48KHz |
|||
|
Bit-rate |
48~384Kbps |
|||
|
IP output |
||||
|
IP out over UDP (Unicast/multicast), RTP/RTSP, (RJ45, 100M) |
||||
|
DVB-C Modulator Section |
||||
|
Standard |
J.83A (DVB-C), J.83B |
|||
|
MER |
≥40dB |
|||
|
RF frequency |
100-1000MHz, 1KHz step |
|||
|
RF output level |
-20~ -5dBm, 1dB step |
|||
|
Symbol rate |
5.000~7.000Msps adjustable |
|||
|
|
J.83A |
J.83B |
||
|
Constellation |
16/32/64/128/ 256 QAM |
64/ 256 QAM |
||
|
Bandwidth |
8M |
6M |
||
|
DVB-T Modulator Section |
||||
|
Standard |
DVB-T COFDM |
|||
|
Bandwidth |
6M, 7M, 8M |
|||
|
Constellation |
QPSK, 16QAM, 64QAM |
|||
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|||
|
Transmission Mode: |
2K, 8K |
|||
|
MER |
≥35dB |
|||
|
RF frequency |
100-900MHz, 1KHz step |
|||
|
RF output level |
-63~ -16dBm, 1dB step |
|||
|
ISDB-T Modulator Section (Optional) |
||||
|
Standard |
ARIB STD-B31 |
|||
|
Constellation |
QPSK, 16QAM, 64QAM |
|||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|||
|
Transmission Mode |
2K, 4K, 8K |
|||
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||
|
RF frequency |
100~900MHz, 1KHz step |
|||
|
RF output level |
-63~ -16dBm, 1dB step |
|||
|
ATSC Modulator Section (Optional) |
||||
|
Standard |
ATSC A/53 |
|||
|
Constellation |
8 VSB |
|||
|
RF output level |
-63~-16dBm (44~91 dBµV), 1dB step |
|||
|
MER |
≥35dB |
|||
|
RF frequency |
100~900MHz, 1KHz step |
|||
|
RF output level |
-63~ -16dBm, 1dB step |
|||
|
System |
||||
|
Management |
Web-GUI, LED+Keyboard |
|||
|
Language |
English |
|||
|
Upgrade |
Web update |
|||
|
General |
||||
|
Power supply |
DC 12V |
|||
|
Dimensions |
160*120*52mm |
|||
|
Weight |
< 1kg |
|||

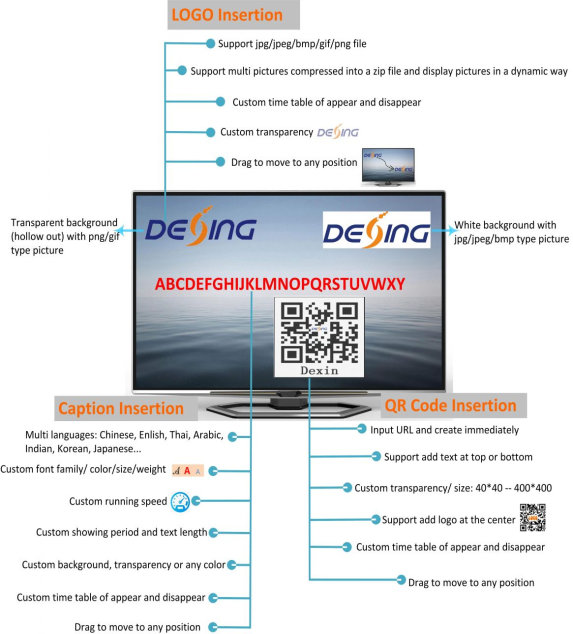

OSD (Logo/QR Code/Caption) Insertion
