1 About the Data Source
|
Data Source |
Program Number |
Mark |
|
Local made Program |
12 |
HDMI HD Program with H.265 |
|
Satellite Program |
80 |
Encrypted/FTA HD Program with H.264 |

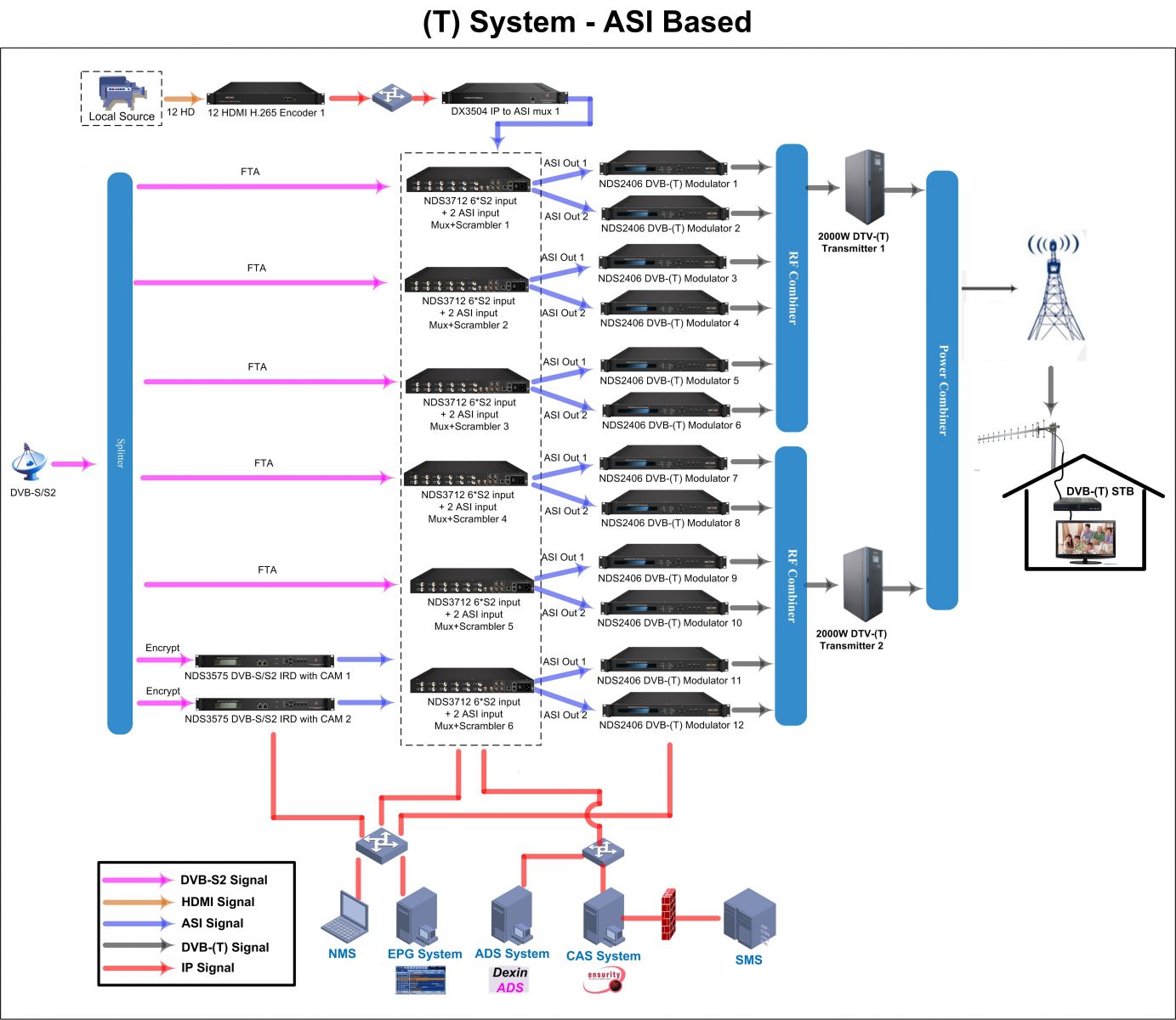

2 Devices Involved
|
Model Number |
Function |
Mark |
|
NDS3224V HEVC/H.265 Encoder |
HDMI HD Program |
Input: 12 HDMI input, H.265 video encoding Output: 1 MPTS and 4/8/12 SPTS output |
|
DX3504 IP Multiplexer |
Convert IP to ASI with Mux |
Input: 4 ASI and 512 IP input Output: ≤4 ASI, 4 MPTS over UDP |
|
NDS3575 IRD |
Encrypted Program |
Input:4 tuner input, 1 IP input and 1 ASI input Output: 2 ASI, 1*MPTS & 8*SPTS |
|
NDS3712 Tuner input Mux Scrambler |
ASI Signal Distribution |
Input: 2 ASI+6 tuner (DVB-S2) input Output: 2 ASI and 2 IP output Support Multiplexer and Scrambler Function |
|
NDS2406 DVB-(T) Modulator |
Convert ASI/IP to DVB-(T) RF |
Input:4 ASI and 1 IP Output: DVB-(T) Modulation |
|
DUT-8323 DVB-(T) Transmitter |
Wireless Transmission |
|
3 Device Number Needed:
Data Source Part:
NDS3224V Number=12/12=1 piece (12 HDMI)
DVB-(T) RF output Part
By using 64QAM, 8MHz, each DVB-(T) frequency can transfer around 38Mpbs.
Each HD H.265 channel takes 3Mbps, while HD H.264 program takes 5.5 Mbps.
The number of HD H.265 channels carried by each frequency=38/3=12.6 =12 Programs/frequency
The frequency needed for HD H.265 channels=12/12=1 frequency
The number of HD H.264 channels carried by each frequency =38/5.5=6.9=7 Programs/frequency
The frequency needed for HD H.264 channels=80/7=11.4=11 frequency
So, total frequency needed is 1+11=12
DVB-(T) Transmitter Part
Suppose the bandwidth for transmitter is 80MHz, and for DVB-(T) modulator is 8MHz, then one transmitter can max carry 80/8=10 Modulators. So the total number for transmitters is 12/10=1.2=2 sets.
Total Device Number:
|
Hardware |
Device |
Piece |
|
NDS3224V HEVC/H.265 Encoder |
1 |
|
|
DX3504 IP Multiplexer |
1 |
|
|
NDS3575 IRD |
2 |
|
|
NDS3712 Tuner input Mux Scrambler |
6 |
|
|
NDS2406 DVB-(T) Modulator |
12 |
|
|
DUT-8323 DVB-(T) Transmitter |
2 |
|
|
Software |
CAS |
1 |
|
EPG |
1 |
|
|
SMS |
1 |
|
|
NMS |
1 |
