1 About the Data Source
|
Data Source |
Program Number |
Mark |
|
Local made Program |
12 |
HDMI HD Program with H.265 |
|
Satellite Program |
80 |
Encrypted/FTA HD Program with H.264 |

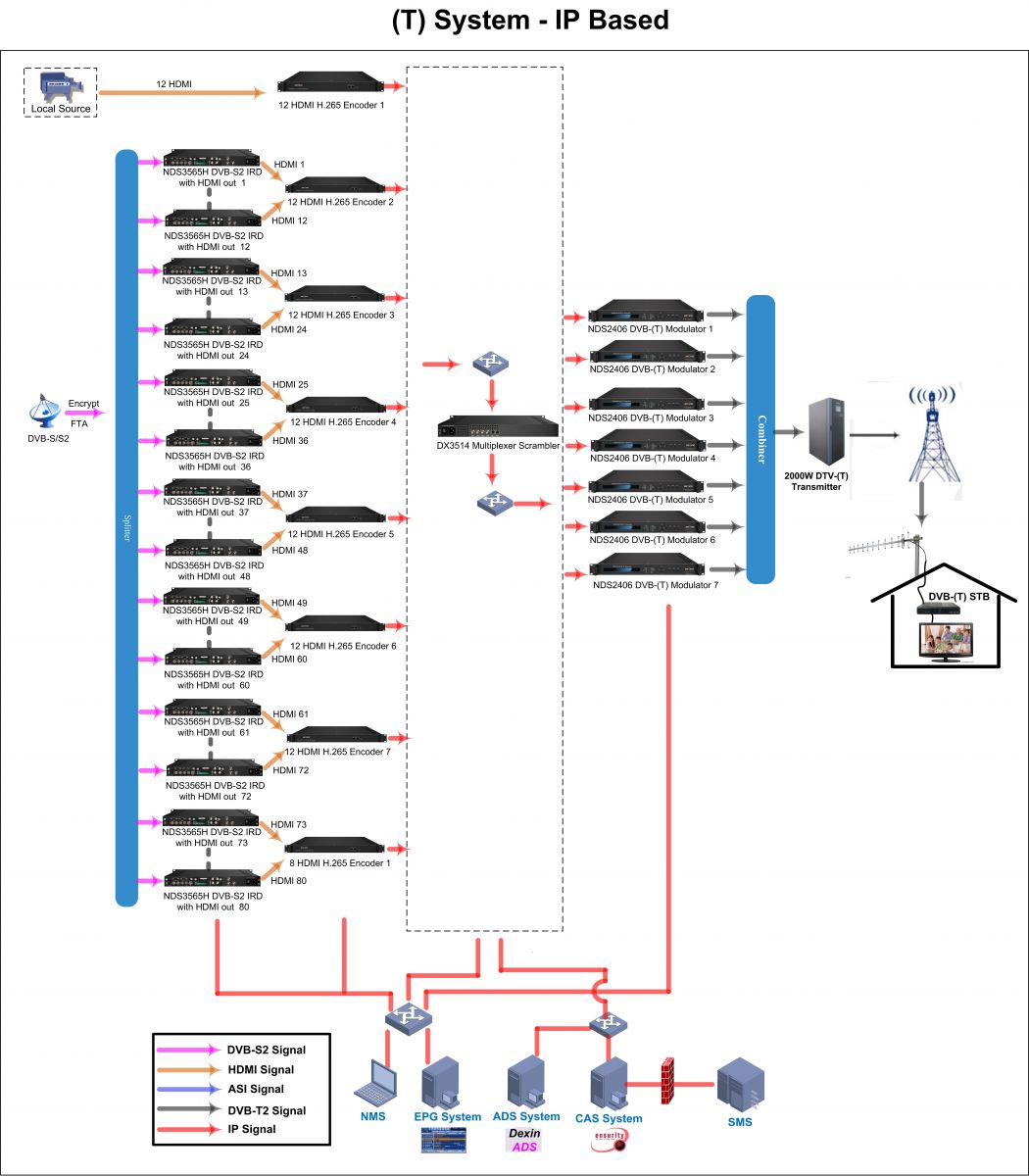

2 Devices Involved
|
Data Source |
Function |
Mark |
|
NDS3224V HEVC/H.265 Encoder |
HDMI HD Program |
Input: 12 HDMI interface Output: 1 MPTS and 4/8/12 SPTS output |
|
NDS3565H HD IRD |
To decode encrypted channel |
Input:2 DVB-S2 tuner input, 1 IP input and 1 ASI input Output: 2 ASI,1 IP (1*MPTS & 8*SPTS) and 1 HD channel output decoded |
|
DX3514 Multiplexer Scrambler |
ASI&IP input/output, with multiplexer and scrambler function |
Input: 128 IP from 3GE ports, max 4 ASI input Output: 4 IP output, max 4 ASI out Support Multiplexer, Scrambler |
|
NDS2406 DVB-(T) Modulator |
Convert ASI/IP to DVB-(T) RF |
Input: 4 ASI and 1 IP Output: DVB-(T) Modulation |
|
DUT-8323 DVB-(T) Transmitter |
Wireless Transmission |
|
3 Devices Number Needed:
Data Source Part:
NDS3224V Number=92/12=7.6=7 pieces (12 HDMI) + 1 piece (8 HDMI)
NDS3565H Number=80/1=80 Pieces
DVB-(T) RF output Part:
By using 64QAM, 8MHz, each DVB-(T) frequency can transfer around 38Mpbs.
Each HD H.265 channel takes 3Mbps
The number of HD H.265 channels carried by each frequency=38/3=12.6 =12 Programs/frequency
The frequency needed for HD H.265 channels=92/12=7.6=7 frequency (if some channels can set lower bitrate like 2.5Mbps, 7 frequencies is enough to carry 92 HD channels.)
DVB-(T) Transmitter Part
Suppose the bandwidth for transmitter is 80MHz, and for DVB-(T) modulator is 8MHz, then one transmitter can max carry 80/8=10 Modulators. So the total number for transmitters is 7/10=0.7=1 set.
Total Decive Number:
|
Hardware |
Device |
Piece |
|
NDS3224V HEVC/H.265 Encoder |
8 |
|
|
NDS3565H HD IRD |
80 |
|
|
DX3514 Multiplexer Scrambler |
1 |
|
|
NDS2406 DVB-(T) Modulator |
7 |
|
|
DUT-8323 DVB-(T) Transmitter |
1 |
|
|
Software |
CAS |
1 |
|
EPG |
1 |
|
|
SMS |
1 |
|
|
NMS |
1 |
